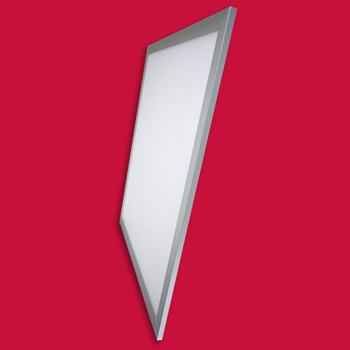

Product Name : LED Panel 40W

Item No. : LT-PSV-040

Description

Lifghton LED panel side view type is designed with 5630LED as lighting sources, aluminium frame with good heat conduction. Ideal for commercial lighting, exhibition Hall, art galleries, museums, offices, reading-room, corridor, staircase lighting,such as contour range.
View More Details
Features
  • Fully compatible with traditional tube grid light.
  • No electric wave, Imported light diffusion material,mercury and lead free.
  • Eco-friendly, energy-saving and high luminous efficacy.
  • Excellent heat dissipation structure, long lifespan.
  • Suitable for hotel, meeting rooms, factory or office, commercial, residential or public facilities, schools, hospitals need energy-saving and high color rendering index lighting areas.

Specification:
PARAMETERS LT-PSV-40-CW LT-PSV-40-WW
Color Temperature Cool White
5000K ±300K		 Warm White
3000K ±200K
Lumen Flux 3320lm± 10% 3030 lm± 10%
Illumination 1M 1150± 10% 1050± 10%
Input Voltage 100~240Vac
Power consumption 40W ±10%
Power Factor PF ≥ 0.9
CRI ≥ 80
Beam Angle 100Deg.± 5%
Material of Case Aluminum + PMMA
Operation Life >25,000 hrs
Dimension 600 x 600 x 12.6mm
Weight 3.5kgs
OperationTemp. -20~40°C
Storage Temp. -40~50°C
