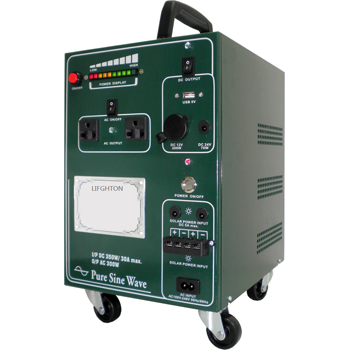

Product Name : Mobile Solar Generator

Item No. : LT-MSG

Description

Mobile solar generator can convert sun light toelectricity for where utility electricity network hardly reaches.It works as emergency power supply and back-up power station to supply endless sun power thru PV panel to user and keep our earth healthy. It is very light, compact and easy-to-install, soprovides us mobility, flexibility and affordability.

Our mobile solar generator can be widely used in farming, fishing, remote area, desert, grassland area, village, country area, outdoor activity, outdoor banquet, travel, sail,camping, as well as lighting.
Features
  1. Capacitor-MPPT empowersefficiently convert energy up to 95%.
  2. The LiFePO4 batteries from12V/ 20Ah to 40Ah will be optional or customized.
  3. Battery management system, BMS, has a cell balancing capability up to max. 350mA.
  4. PV panels of 12V system are suggested. For all sorts of PV panels, a-Si, mono-c-Si or Poly-c-Si ones, any of them from 20Wp to 300Wp is available,whose electric parameters of Voc and Wp are subject to 65V /300W, with the max current regulated to 30A or below.
  5. AC+DC Output Power: Rated Voltage 300W with peak Watts 600VA. Total out power is under 5/12/19VDC and 100/110/220/230VAC.(Pure Sine Wave inverter).
  6. The smart MCU coordinates all parts of the system, contributing to converse energy and manage battery charge and discharge. It optimizes the performance, rather than just let individual units work alone.
  7. Software and hardware are well installed for safe protections: such as over/under-voltage, over-charge/discharge, over-current, over-heating, under-temperature, short-circuit, reverse polarity connection; and moreover, it performs powerful management over every single cell of battery.
  8. The charge mode of PULSE, formed by a multi-stage PWM/PFM, drives the charging unit to work efficiently, very fitting for LiFePO4 battery applied to solar power supply system.
  9. Easy-to-understand interface, matching with Input/Output LED indicators; and on/off switch enables users pleasantlyoperate this equipment.
  10. LED indicators and Battery Fuel Gauge Display show users the following functions such as: Battery Status,System Status, AC fault LED warning, Bleeping Warnings at low battery of AC Output, Battery Gas Gauge Display flashing at low battery of DC Output.
  11. Our Super Low Dissipating Circuitry design ensures a less than 10μA drain current in quiet shutdown modewhenever Power Switch is off or when the system comes into an under-voltage protection.
Mobile Solar Generator work with 12V or 24V LED lights.
24V LED Bulb 8W 24V LED Bulb 8W 12V LED MR16 GU5.3 12V LED MR16 GU5.3

Specification:
Item Condition & Interface Parameter
1 PV Input Solar System Rated Voltage 12Vdc
2 Max Solar Power Rating 300W
3 Solar Input Current (Imp) ≦20A
4 Solar Input Voltage (Vmp/300Wp) 65Vdc
5 DC Jack x2 10A
6 Terminal block x2 30A
7 AC Input AC I/P Socketx1 100~240Vac, 50/60Hz
8 AC Output Output wave Pure Shine Wave
9 Power 300W/600VA (optional)
10 Efficiency ≧85%
11 AC Socket x 2 110V/220V, 50/60Hz (optional)
12 DC Output Power 70W 5/ 12/ 15/ 19/ 24Vdc (optional)
13 DC Jack x1 12/ 15/ 19/ 24Vdc (optional)
14 USB Port x1 5V 0.5A
15 Cigarette Lighter Outlet x1 9.06~14.6Vdc 15A
16 DC Output Current Peak 200mS 8A
17 Power Storage Battery LiFePO4 @0.2C 25℃ 12Vdc, 30 / 40Ah (optional)
18 Batt. Capacity Indicator Light 10 LEDs
19 Watt/Hour 360 / 480Wh (optional)
20 Charge Controller Charging Mode: Pluse Multi-Stage PWM/PFM
21 Rated Voltage 12Vdc
22 Solar Max Input Current 20A
23 Max Output Current 30A
24 Protection BMS, Over-charge, Over-heat, Low Voltage,
Reverse connection, Short-circuit
25 Case Galvanized Steel Thickness 1.5mm
26 Net Weight (30 /40Ah) 10.5 / 12kgs
27 Color Green
28 Dimension 380x220x260mm
29 Other Noise (1M) <45db
30 Working Temperature -30℃~+75℃
31 Ambient Temperature -30℃~+50℃
32 Storage Temperature -40℃~+75℃ (Battery<40℃)
33 Ambient Humidity 5~90%
34 Altitude <3000M
