LED High Bay / Low Bay

LED Low Bay-Ring

Product Name : LED Low Bay-Ring

Item No. : LBL090

Description

We are reliable manufacturer of LED Products, including LED Low Bay-Ring and other Indoor Lighting Lamps.

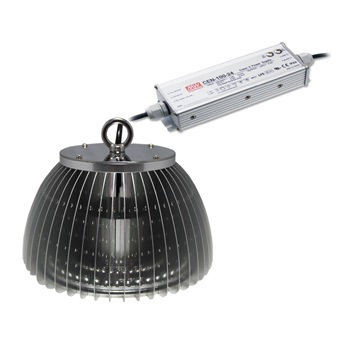

Our LED Low Bay Ring (Hook) type especially works with outside MeanWell driver. As we know, LED lights combine with 3 main parts, including Light source (LED), Heat-dissipation (heat sink) and Power (driver), their lifespan typically bases on the shortest board, which generally is the lifetime of power driver. In this way, we provide this solution, driver outside, to make users very easily replace driver after a long time operation.

Features
  • Using Japan LED or Cree LED.
  • MeanWell driver with universal input voltage from AC90~264.
  • Ring/Hook type with driver outside can provide users easier for installation and maintenance.
  • Made In Taiwan.

Low Bay-High Lumen Flux Output, Light Weight

1.Power Consumption: 90W / 60W
2.Indoor and Outdoor waterproofing types.



Product Parameter

60W LED Low Bay 90W LED Low Bay
Model No.: LBL060 LBL090
Voltage 90~264 Vac
MAX Voltage 305Vac
Current <0.6A±10% <0.9A±10%
Frequency 50 ~ 60 Hz
Power Consumption 60w ±10% 90w ±10%
Power Factor > 0.9
Protection Temperature > 95℃
Operating Life >30,000 hours
Color Temp 5300~6500 K
Lumen Flux >6180 lm±10% >9270 lm±10%
CRI Cool White >75
Viewing Angle 140 °
Weight 1.45 kg 1.45 kg
Socket Type E39/E40/Ring type power outside
Operation Temperature -20~50 ℃
Storage Temperature -40~60 ℃
Operation Humidity 10~90 %
Warranty 2 years
