LED High Bay / Low Bay

LED High Bay-Ring

Product Name : LED High Bay-Ring

Item No. : HBL180

Description

As a leading Manufacturer of LED Products, we provide first-rate LED High Bay-Ring that meets specific technical and performance requirements.

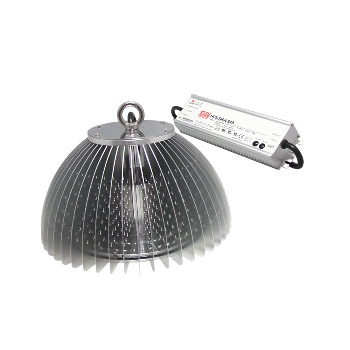

Our LED High Bay Ring (Hook) type especially works with outside MeanWell driver. As we know, LED lights combine with 3 main parts, including Light source (LED), Heat-dissipation (heat sink) and Power (driver), their lifespan typically bases on the shortest board, which generally is the lifetime of power driver. In this way, we provide this solution, driver outside, to make users very easily replace driver after a long time operation.

Features
  • Using Japan LED or Cree LED.
  • MeanWell driver with universal input voltage from AC90~264.
  • Ring/Hook type with driver outside can provide users easier for installation and maintenance.
  • Indoor and outdoor waterproof types for your option.
  • Made In Taiwan.

High Bay-High Power Output, Light Weight

1.Power Consumption: 180W / 150W / 120W
2.Indoor and Outdoor waterproofing types.



Product Parameter

120W LED High Bay 150W LED High Bay 180W LED High Bay
Model No.: HBL120 HBL150 HBL180
Voltage 90~264 Vac
MAX Voltage 305Vac
Current <1.2A±10% <1.5A±10% <1.8A±10%
Frequency 50 ~ 60 Hz
Power Consumption 120w ±10% 150w ±10% 180w ±10%
Power Factor > 0.9
Protection Temperature > 95℃
Operating Life >30,000 hours
Color Temp 5300~6500 K
Lumen Flux >12300 lm±10% >15400 lm±10% >18500 lm±10%
CRI Cool White >75
Viewing Angle 140 °
Weight 3.2 kg 3.5 kg 3.5 kg
Socket Type E39/E40/Ring Type power outside
Operation Temperature -20~50 ℃
Storage Temperature -40~60 ℃
Operation Humidity 10~90 %
Warranty 2 years
